Welding Gauge HJC40 (Slider)WG-12A Features: Checks Crown and Leg Height Checks Undercut Depth Checks Throat Size Checks Weld Length Checks Angle and Gap
  • Description
  • Details

Checks Crown and Leg Height
Checks Undercut Depth
Checks Throat Size
Checks Weld Length
Checks Angle and Gap

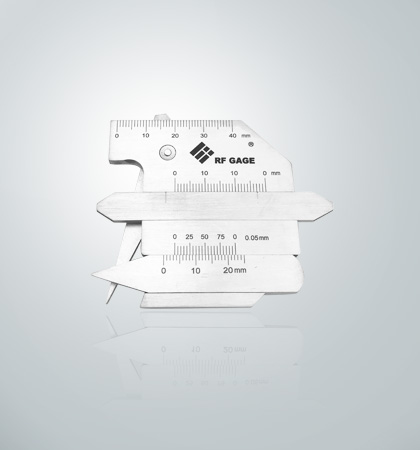

The Gauge is composed of stainless steel and can be used to obtain a wide range of measurements.

This gauge consists of five major components form which measurements can be taken.

They are the rotating fan, working edge, main ruler, side slide with point and center slide.

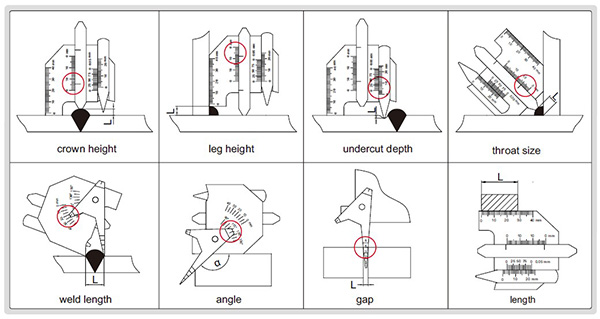

Some types of measurements that can be taken include but our not limited to butt weld height, undercut, angle of preparation or bevel, gap size, leg of fillet weld throat of fillet weld and the face of the butt weld.



Model No.
Measurement
Range
Graduation
Accuracy
WG-12A
crown height
0-10mm
1mm
±0.5mm
leg height
0-14mm
1mm
±0.5mm
undercut depth
0-5mm
0.05mm
±0.05mm
throat size
0-13mm
1mm
±0.5mm
weld length
0-40mm
1mm
±1mm
angle
90°-150°

±1°
gap
0.5-5mm
1mm
±0.5mm
length
0-40mm
1mm
±0.5mm
